TORQUE LIMITER
FRICTION TYPE
.png)

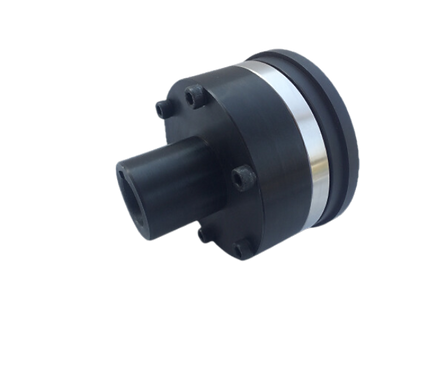

TYPE - STL
Torque limiter is a mechanical device which protects motor, gear box and machine when overload happens if preset sprint of limit exceeds then the drive elements sleeps and protect machinery equipment against costly damage.
.png)
TYPE - STLC
Torque limiter and Torque limiter coupling is uniquely designed to deliver precise accuracy which helps to keep trouble-free and long life drive system.
PULLEY TYPE
Torque limiter and Torque limiteer coupling is uniquely designed to deliver precise accuracy which helps to keep trouble-free and long life drive system.
.png)
JAW TYPE
Jaw type torque Limited coupling is a mechanical device that is used in between two inline shops which have to be comfortable with each other the drive planes are placed on the bush and clamped in between with the aid of a cup spring washer by adjusting the nut at the Desire torque if the load exceeds the desired limit then the drive elements sleeps does protecting the machine from breakdown and damage
Ball Type Synchronous Torque Limiter
The torque limiter are mechanically engaged through angular detent loaded with balls under the pressure of special disc springs at rated torque once this set torque limit exceeds due to the overload then these balls will come out from detent and the coupling will become Idol or disconnected to transmit the power from Prime mover in this overload condition the conical flange more to MM away from its original position and same displacement being used to send by proximity switch or limit switch to give the signal to prime mover to shut down or to remove the overload
Ball Type Manual Disengagement Torque Limiter
The torque limiter are mechanically engaged through angular detent loaded with balls under the pressure of special disc springs at rated torque once this set torque limit exceeds due to the overload then these balls will come out from detent and the coupling will become Idol or disconnected to transmit the power from Prime mover in this overload condition the conical flange more to MM away from its original position and same displacement being used to send by proximity switch or limit switch to give the signal to prime mover to shut down or to remove the overload
Bellow Type Torque Limiter Coupling
A Bellow Type Torque Limiter Coupling is a mechanical device used to protect machinery from overload or torque spikes. It consists of a flexible bellow or bellows that connect two shafts, allowing rotational motion to be transmitted between them. The bellow acts as a torque limiter, providing a flexible connection that can slip or disengage when a certain torque threshold is exceeded.
IEC Frame Torque Limiter
.png)
A torque limiter or overload clutch is a mechanical device that protects or Guards Prime Movers such as Motors gearboxes or equipment from damage when there is an overload apart from several models and Designs of SYTCO torque limits we are manufacturing torque limits in an enclosed unit to mounted simply in between Flange mounted motor and gearbox as per existing IC frame sizes it makes very convenient less talk size and auto sense SYTCO offers in this design either friction type or ball type with proximity sensor to get it indicated or control if there is overload.
